Tile Calculator
DIY MaterialCalculate tiles and grout bags needed for floors or walls, with waste factor adjusted for your installation pattern.
Your Measurements
Check box label — varies by manufacturer

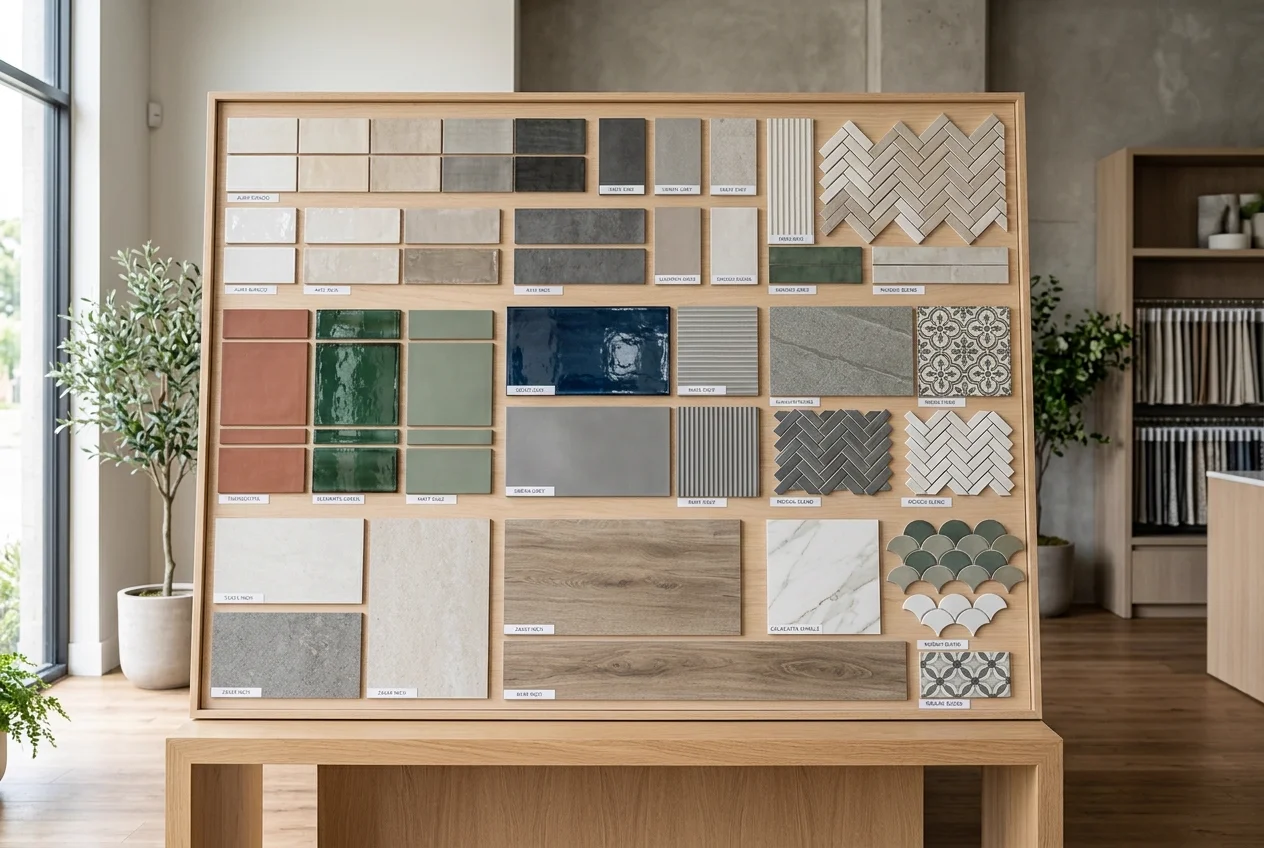

Buying & Material Selection Guide
Selecting tiles involves matching the material to its intended application. Check the Porcelain Enamel Institute (PEI) rating: Class III is standard for residential flooring, while Class IV or V is required for high-traffic entryways or commercial use. Ensure your selection matches wet area safety standards, such as a Dynamic Coefficient of Friction (DCOF) of at least 0.42 for shower floors or bathrooms. Ceramic tiles absorb more water than porcelain, making porcelain tiles the standard choice for outdoor applications or high-moisture rooms.

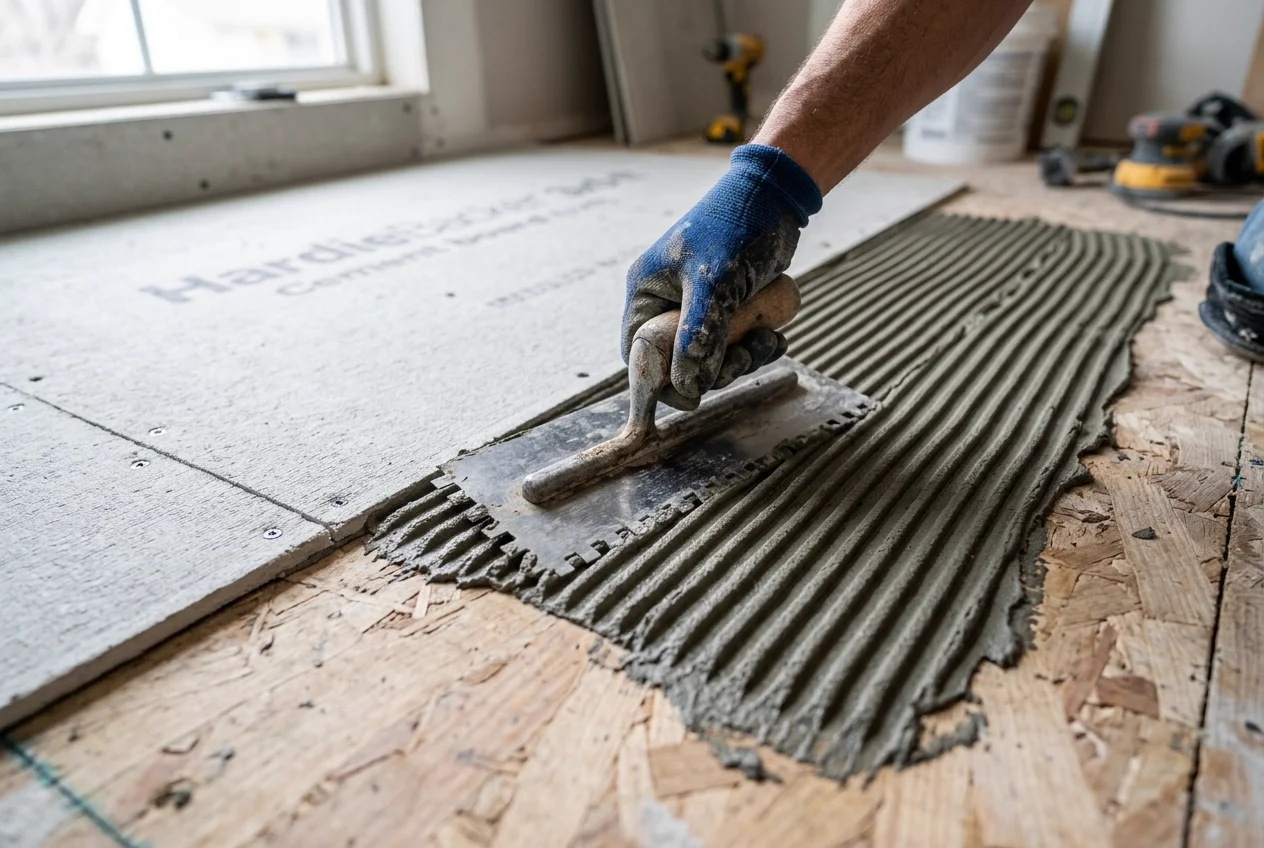

Site Prep & Pro Installation Practices
Tile installations require a perfectly flat, deflection-free subfloor. For large format tiles (any side 15 inches or longer), substrate deviation must not exceed 1/8 inch in 10 feet. Level subfloors with self-leveling underlayment or cement backerboard if necessary. Use modified thinset mortar for porcelain tiles to ensure proper adhesion. When laying the tiles, always plan your layout from the center of the room outward to avoid tiny, hard-to-cut slivers of tile at the walls, and leave expansion joints around the perimeter.
Regulatory Building Standards — ANSI A108.19
Cited StandardLippage is the vertical offset between the edges of adjacent tiles, resulting in an uneven floor surface that is unsightly, difficult to clean, and a potential tripping hazard. According to the ANSI A108.19 specifications set by ANSI, the maximum allowable lippage between adjacent ceramic or porcelain tiles is strictly limited to 1/32 inch. This restriction becomes challenging when installing modern large-format tiles—those with any side 15 inches or longer—because large tiles naturally warp slightly during kiln firing, bowing up at the center.
To offset this inherent bowing, installers should avoid a 50% offset brick pattern, opting instead for a 33% offset layout that prevents the highest center point of one tile from aligning directly with the lowest corners of adjacent tiles. Furthermore, subfloors must meet TCNA flatness tolerances of 1/8 inch deviation over 10 feet. Using wedge-and-clip mechanical tile leveling systems helps hold tiles flat and flush while the thinset mortar cures, and maintaining minimum grout joint widths of 1/16 inch for rectified tile allows enough flex to absorb minor substrate vibrations.
- •Lippage between adjacent tiles must not exceed 1/32 inch (0.8 mm) per ANSI A108.02.
- •Avoid 50% offset layouts for large-format tiles; use a maximum 33% offset layout instead.
- •Subfloor flatness deviation must be less than 1/8 inch over a 10-foot span.
- •Use a mechanical leveling wedge-and-clip system to maintain flatness while thinset cures.
Frequently Asked Questions
Technical building code (IRC/ASTM) references and trade-tested guidance for your project.
Porcelain tile is denser, fired at higher temperatures, and absorbs less than 0.5% water (ANSI A137.1). This makes it highly durable and freeze-resistant, suitable for outdoor slabs or bathroom floors. Ceramic tile is softer, absorbs more water, and is best limited to interior walls or low-traffic floors.
Grout joints absorb movement and expansion stresses in floors. Setting tiles edge-to-edge without grout (less than 1/16-inch) leads to 'tenting' or cracking when the structure moves. Joint width should follow manufacturer recommendations (typically 1/8 to 3/16 inch for standard tiles).
Lippage refers to vertical displacement where one tile edge sits higher than the adjacent tile, causing stubbed toes. It is prevented by ensuring the subfloor is flat to within 1/8 inch over a 10-foot span (TCNA standard), using tile leveling clips during installation, and avoiding offset patterns greater than 33% on large tiles.
